In this tutorial, you will learn how to examine your task, have a look at and log data produced by orogen tasks and finally how to replay them.

Task Inspector

While running a task, you can examine the task with the Task Inspector.

  • Open another console (don’t forget to do ‘.’ there)
  • Start your message_consumer script from the previous tutorial (~/dev/tutorials/orogen/messages/scripts/connect.rb)
  • In the other console, start the task inspector with rock-display message_producer

You will see the task inspector showing the message producer task. When you click it, the entry expands and shows a property section, input port section and an output port section. The output port section also shows the port called messages. When you click on an output port, the data sent by the port is being displayed, which allows you to examine it.

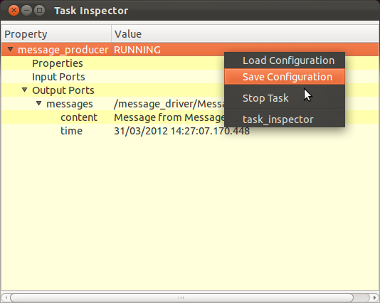

Task Inspector

If started without arguments, the task inspector shows up all running tasks after some delay (to select a different Corba Name Service than the local one, use the option --host). A right-click on any output port or subtype allows to open available plugins able to display the selected data structure (if you wish to add your custom plugins, see ‘Writing a Vizkit Plugin’).

Logging Data

By default, all tasks come with a logger component that allows writing the data of the output ports to a file.

Activating logging: You can activate the logging by calling the ruby method log_all from your ruby start script. If you only want to log the ports or the properties of the tasks you can also call the methods log_all_ports or log_all_configuration instead.

... 'message_producer::Task' => 'message_producer',
    'message_consumer::Task' => 'message_consumer' do
  message_producer = Orocos.name_service.get 'message_producer'
  message_consumer = Orocos.name_service.get 'message_consumer'


By default, all the logged data goes to log files called your_task_name.x.log in the current working directory. In this case, all the logged data goes to
message_producer.0.log. There is also a file message_consumer.0.log which holds no data since the task has no output port. The digit in the end increases automatically.


Rock is shipped with a command line tool for displaying the content of log files. Therefore, if you want to look into a log file without replaying it to the framework, you can call rock-replay log_file.x.log to get a graphical overview of the logged data. By double clicking on a port name, Vizkit is trying to find a widget plugin to display the data. If it cannot find one, vizkit is using a generic struct viewer widget to display the content of the sample (if you wish to add your custom plugins, see ‘Writing a Vizkit Plugin’). To display the log file recorded above, call:

rock-replay message_producer.0.log

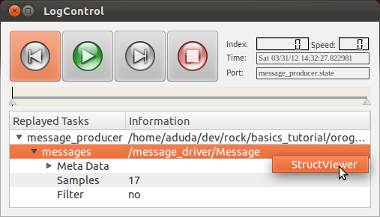

Rock Replay


In this tutorial, you have learned to:

  • Examine a live task with rock-display,
  • activate logging and
  • visualize the logged data using rock-replay.
