Getting Started

We'll be getting right into the meat of things by creating a system's integration package (a bundle), and setup a gazebo environment that will allow us to continue with actually doing something with the system.

Bundles and bundles' file structure

In Rock, the central place where the system design and integration happens is a bundle. A bundle package is created in the bundles/ folder of your Rock workspace. For the time being, you can see bundles as a collection of Syskit models (in models/), configuration files (in config/), SDF scenes (scenes/) and SDF models (models/sdf/).

The following assumes that you have a bootstrapped Rock installation, and that you have a terminal in which this installation's file has been sourced.

Let's create a new bundle. In your Rock's workspace do

cd bundles
syskit gen app syskit_basics
cd syskit_basics

This creates a Roby application, Roby being the underlying application framework and execution engine that Syskit is based on. In addition, it loads and sets up Syskit in the applications config/init.rb.

We can now verify that the generated application loads with

$ syskit run
Bundles[INFO]: Active bundles: syskit_basics
default[INFO]: logs are in /home/doudou/dev/logs_area/syskit_basics/20170609-1609
default[INFO]: loaded Roby on ruby 2.3.1p112 (2016-04-26 revision 54768) [x86_64-linux]
default[INFO]: done initialization
default[INFO]: ready

Either hit CTRL+C, or run syskit quit in another terminal, to make it exit.

$ syskit quit
Bundles[INFO]: Active bundles: syskit_basics
default[INFO]: connected
default[INFO]: waiting for remote app to terminate
default[INFO]: closed communication

Robot and Scene description using SDF

The Scene Description Format is a XML format defined by the Gazebo developers to describe both scenes and objects in these scenes (as e.g. robots). We're going to learn how to leverage the information present in an SDF file as possible, with the goal of having the SDF be the authoritative information source for any information that can be represented in it.

But for now, let's get to create ourselves a scene with a robot in it. We will not describe the SDF format in details, there's a lot of Gazebo-related documentation about that, including a reference of the format on

SDF scenes are made of models. Loosely-speaking, each model represents one object in the scene. Moreover, models can be included in scenes through the <include> tags, allowing to reuse models in different scenes. In general, your robot should at least be described in a separate model to allow you to reuse it in different simulation scenes.

For the purpose of this part of the documentation, we'll use Gazebo's UR10 arm model as our robot. We however need to integrate it in another model so that its base is fixed (using this method).

Usually, the first scene one creates is an empty one, which later will give us an environment in which to test basic functionality, without having to care about collisions.

In the bundles, scenes are saved in scenes/SCENE_NAME/, e.g. scenes/empty_world/

<?xml version="1.0"?>
<sdf version="1.6">
    <world name="empty_world">
        <model name="ur10_fixed">
            <joint name="attached_to_ground" type="fixed">

Running and visualizing a Gazebo environment

Rock offers vizkit3d, its own 3D visualization environment. Since we will definitely want to augment the visualization of the world with e.g. algorithm feedback and/or sensor data, we'll be using this environment for the Gazebo world as well, instead of using Gazebo's client.

The rock-gazebo tool starts a Vizkit3D visualization for the Gazebo scene.

rock-gazebo empty_world

Starts both a Gazebo simulation and displays it:

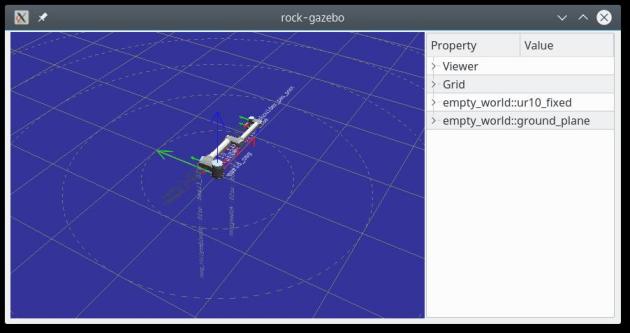

Visualization of the simulation state with rock-gazebo-viz

The ur10 and ground_plane models we are referencing in this world file need to be downloaded from Gazebo's model repository. This is done automatically by rock-gazebo the first time they're needed, but can also be done explicitly with the --download-only option, e.g.

rock-gazebo --download-only empty_world

Preparing the gazebo Syskit configuration

Syskit configuration in bundles may be split into multiple configurations / environments called "robots". A common organization is to create one bundle per robot type or project, and create two robot configuration in it, one for the simulation (gazebo) and one for the live system (live).

Let's create the gazebo configuration:

$ syskit gen robot gazebo
Bundles[INFO]: Active bundles: syskit_basics
      exists  config/robots
      create  config/robots/gazebo.rb

In order to setup Syskit to use the Gazebo instance, we first have to require integration code and then load the environment. This is done by modifying the newly-created config/robots/gazebo.rb configuration file to add:

Robot.init do '../common_models'
    require 'rock_gazebo/syskit'
    Conf.syskit.transformer_enabled = true

Robot.requires do

Most Syskit commands accepts take a -r option followed by a name. This tells Syskit which configuration file should be loaded within config/robots/ and only this. For instance, starting Syskit with the Gazebo configuration about is done with syskit run -rgazebo.

Next: now that we have a minimal scene and a working Gazebo installation, let's do something with it

Under the hood: how does the Rock/Gazebo bridge work

Under the hood, the objects in the Gazebo instance are exposed to the Rock system by means of a Gazebo system plugin. Each model, link, sensor and some plugins are exposed this way. The plugin is implemented in the simulation/rock_gazebo package. The components that implement this interface are implemented in the simulation/orogen/rock_gazebo package, and are being run within the Gazebo process itself, synchronously with the Gazebo simulation loop. The rock-gazebo and rock-gzserver tools are simple shell wrappers around the gazebo and gzserver commands, but with the addition of the system plugin.

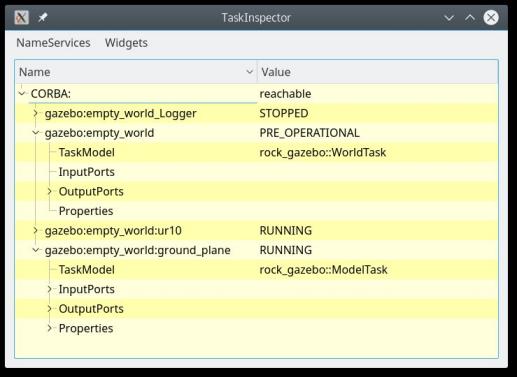

The task contexts in our scene can be visualized with rock-display:

Components exported by a Gazebo instance under Rock

rock-gazebo-viz sets up the visualization to match the data in the SDF file and then listen to pose updates from the rock_gazebo::ModelTask components exposed by the Gazebo process. Given that this data is only output if the components are running, rock-gazebo-viz starts them automatically. Use --no-start to avoid this.
